Deepagri is the first leading enterprise in poultry breeding by integrating research on engineering thermodynamics, fluid dynamics and heat transfer, combining the IoT, big data and artificial intelligence technology, and so on.
Through the IoT technology, the temperature, humidity, carbon dioxide concentration, wind force inside and outside the shed, negative pressure and so on of the breeding environment are collected in real time through sensors, transmitted to the cloud, the optimal breeding conditions are found through the algorithm, and these guiding instructions are fed back to the control system of the shed to improve the comprehensive breeding efficiency.

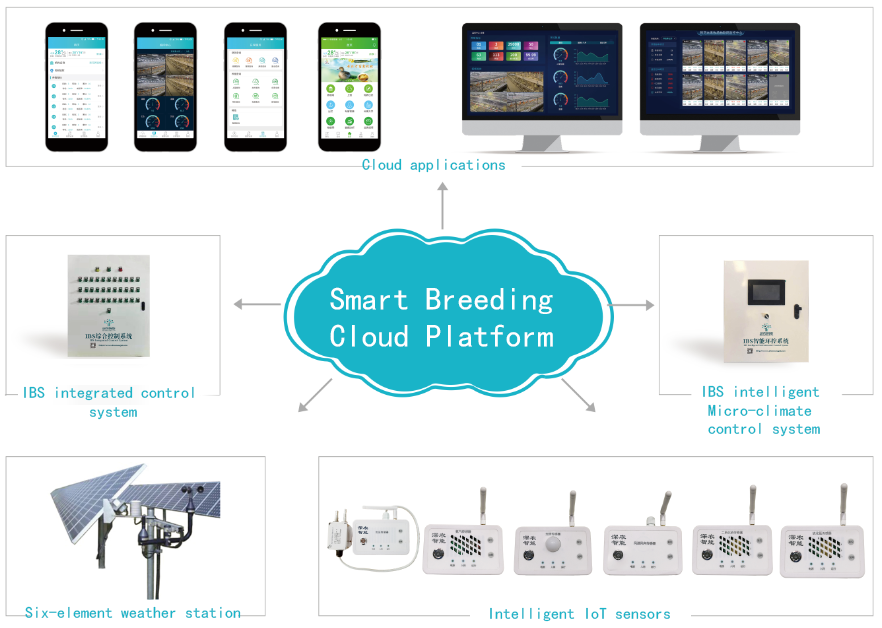

Deepagri Intelligent Micro-Climate Controlling system and Peripheral Equipment Topology
Deepagri Intelligent Micro-Climate Controlling System and Peripheral Equipment Topology
Through the research on the ventilation principle of the existing shed, Deepagri designs the innovative Micro-Climate Controlling algorithm to enhance the automation and intelligence level of the shed environment control. At the same time, a new type of shed was designed, combined with Micro-Climate Controlling equipment, to solve the ventilation problems existing in the existing shed.
Micro-Climate Controlling system Technology Topology

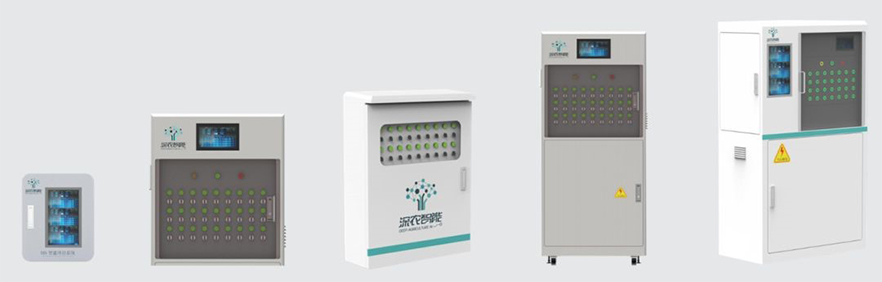

Micro-Climate Controlling system Series
Master Micro-Climate Controlling system has the ability to calculate the body temperature of poultry, analyze the changing process of poultry physiological characteristics, and effectively grasp the vital signs of poultry.

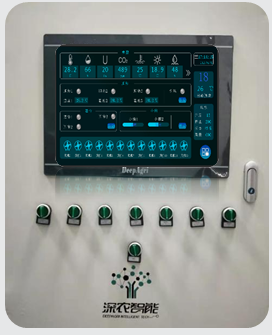

Master Micro-Climate Controlling system
Main features
? Rich redundant backup design to increase breeding safety
? Integrated rechargeable lithium battery pack, main power failure can still carry out data recording, local alarm, remote alarm
? Powerful network communication capability to cope with future control center-type unified control and scheduling
? Support digital probe, thermistor and other sensors, sensors with the ability to switch between the main and standby automatic, to ensure that the extreme situation of aquaculture is not affected
? Intelligent small window control with accurate calculation of real-time body sense temperature
? Flexible hardware function expansion to deal with the future highly integrated shed centralized control;
? Friendly interaction: all use 7 inch and above LCD touch screen, extremely convenient operation;
? The adaptability of harsh environment, with perfect anti-electromagnetic interference ability, the main interface circuit can resist over ±2 kV electrostatic, surge impact
? Mature IoT scheme, real-time monitoring of greenhouse environmental data, switching status of equipment (fan small window water pump, etc.), fault alarm information, real-time synchronization to the FFM future pasture system to achieve strong data traceability and aquaculture integrated management capabilities.
Defender series Micro-Climate Controlling system has powerful real-time operation control, multi-interface flexible support, the function can be cut for the demand of the middle end breeding shed, and can realize the control and monitoring of all controllable equipment in the shed.

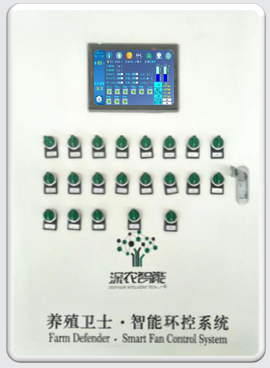

Defender Smart Micro-Climate Controlling system
Main features:
? 24-way control
? Multi-way temperature measurement
? 3-way humidity
? NH3、CO2、CO sensors are accessible
? 3 area heating control
? Automatic window control
? 3 wet curtain pumps control
? Time control for each fan
? Failure warning
The Micro-Climate Controlling system developed by Deepagri for some simple market needs to support sensor access.

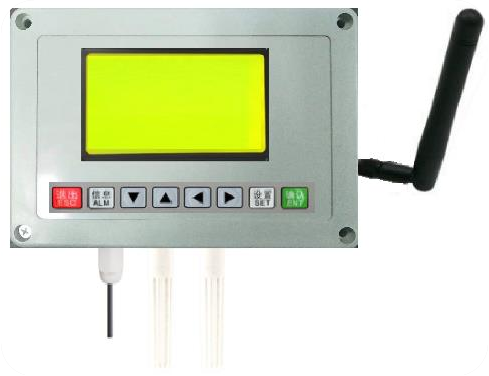

Genius series smart Micro-Climate Controlling system
Main features:
? CO2 detection
? Temperature detection
? Humidity detection
? CO detection
? Ammonia detection
? Local data display and upload cloud
? 1-way acousto-optic alarm
? Alarm algorithm based on age in days
Application schematic

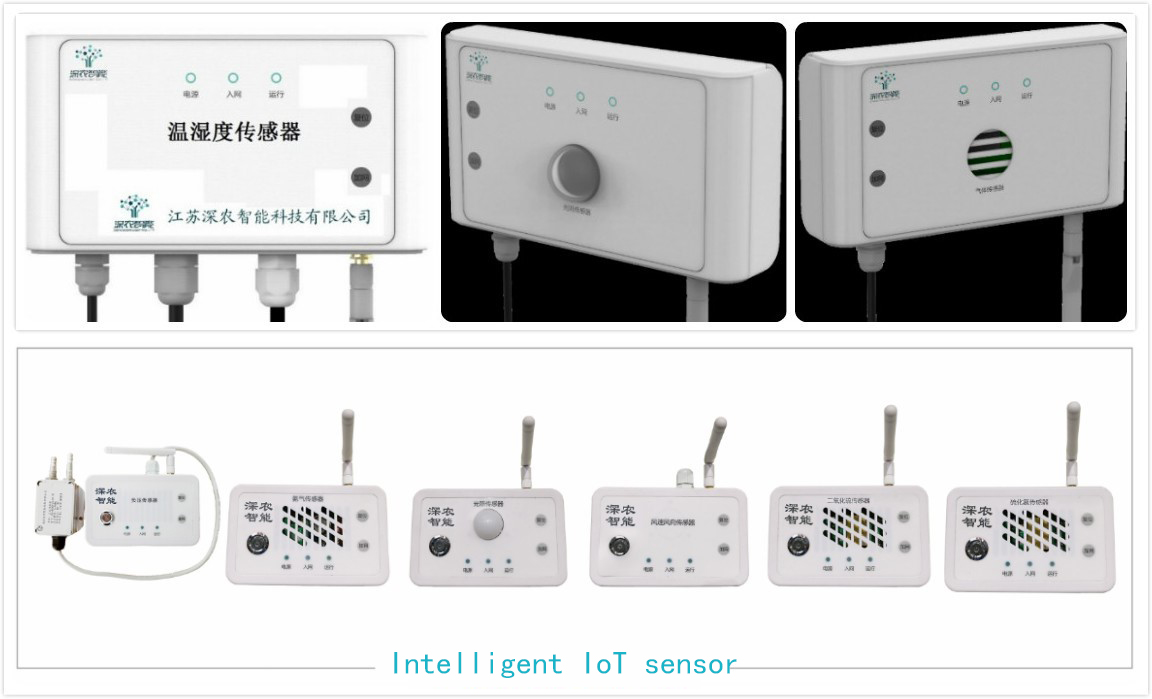

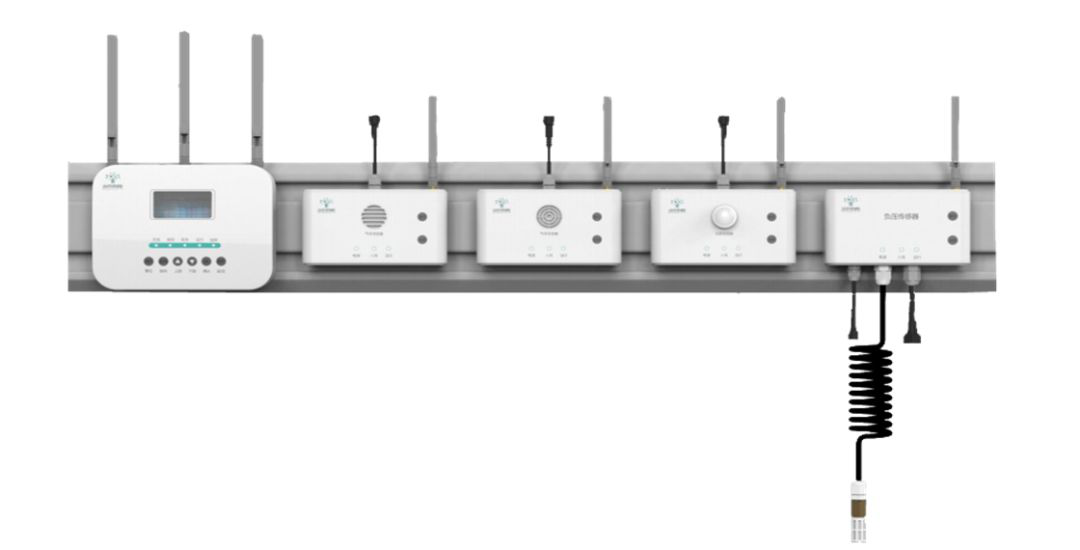

Sensor Appearance

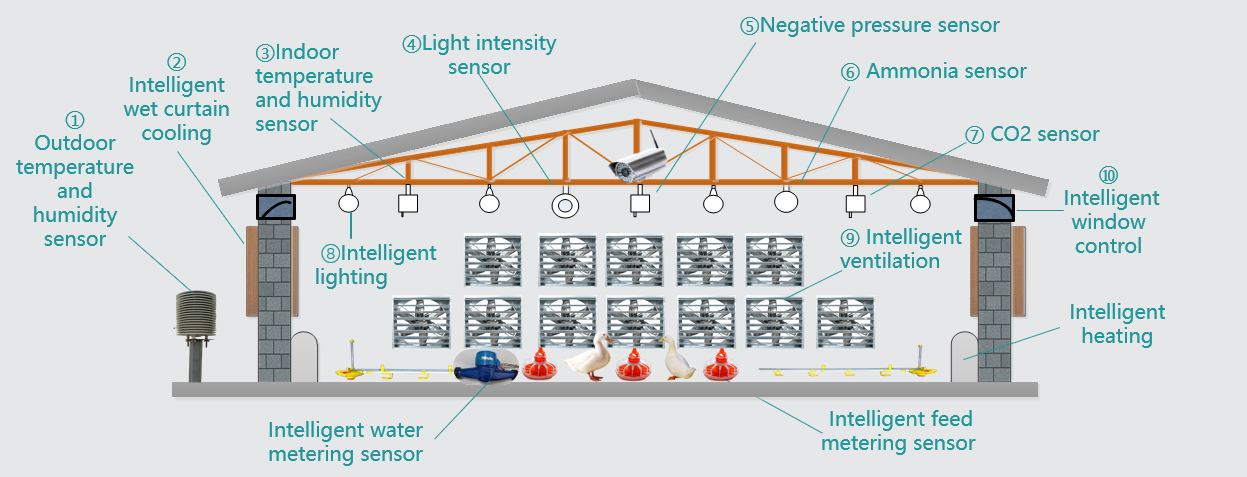

Sensor installation schematic
Powerful network communication capability to deal with the future control center type of unified control scheduling.
Part Equipment | 485 Cable Transmission | CAN Cable Transmission | LORA Wireless Transmission |
Ammonia sensor | ★ | ★ | ★ |
CO2 sensor | ★ | ★ | ★ |
Negative pressure transducer | ★ | ★ | ★ |
Displacement sensor | ★ | ★ | ★ |
Water temperature sensor | ★ | ★ | ★ |
Temperature and humidity sensor | ★ | ★ | ★ |
Illumination sensor | ★ | ★ | ★ |
Smart water meter sensor | ★ | ★ | ★ |
Major advantages
? Adopt RS485 transmission signal as the most common device interface
? Adopt CAN transmission signal to ensure safe transmission of breeding data
? Adopt LORA transmission signal to facilitate arrangement of equipment in shed

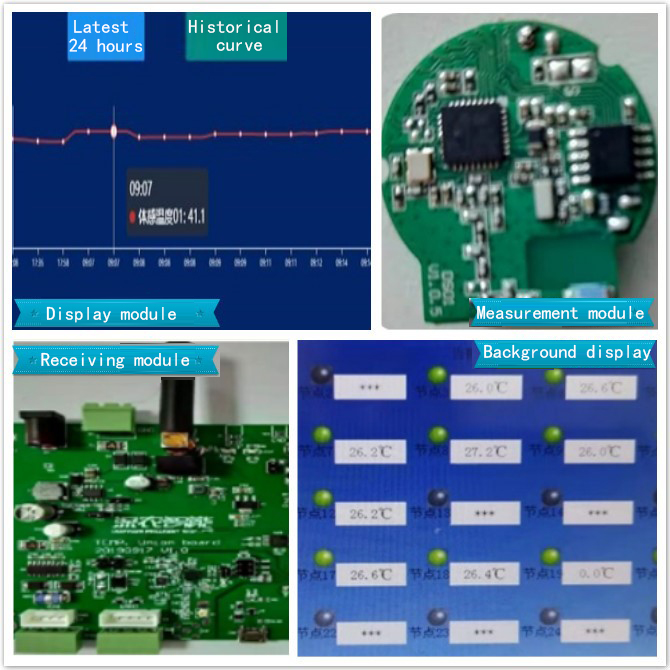

The poultry body surface temperature sensor developed by Deepagri can accurately measure the temperature of poultry signs, the data can be automatically uploaded to the cloud, can be queried by mobile phone and computer, and can also provide early warning in time and take all kinds of preventive measures effectively. At the same time, the product has low power consumption and long service time.
